Pipe conveyed logging offline inclinometer ITA

Offline logging inclinometer - ITA



In the ever-evolving world of oil drilling, innovation is key. One such innovation that has taken the oil industry by storm is the Offline Logging Inclinometer ITA (Inclination and Toolface Angle). This cutting-edge technology has become indispensable when conventional wireline operations are not feasible, especially in highly deviated and horizontal wells, high mud density scenarios, and situations where the risk of accidents is high. In this article, we will delve deep into the world of Offline Logging Inclinometer ITA and understand its significance in modern oil drilling.

What is Offline Logging Inclinometer ITA?

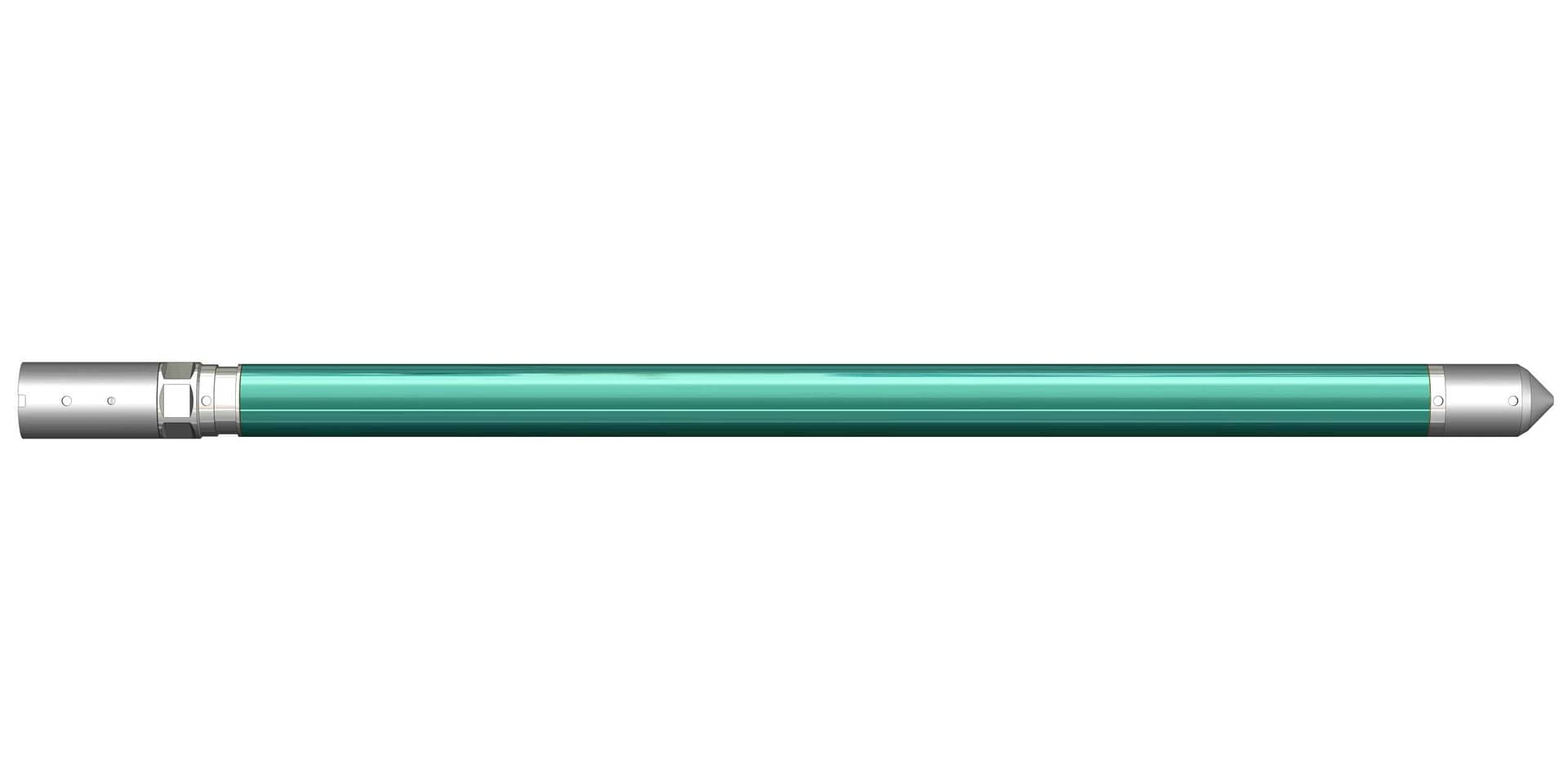

Offline Logging Inclinometer ITA is a remarkable device designed for continuous measurement of the azimuth, inclination, and toolface of the borehole instrument as it traverses the depths of the wellbore. This technology comes into play when working in the openhole of both vertical and horizontal wells, offering precise data that is crucial for drilling operations. The delivery of the inclinometer to the bottomhole is facilitated by a rigging tool, known as pipe-conveyed logging (PCL).

The Ingenious Design

The core of the Offline Logging Inclinometer ITA lies in its ingenious design. It incorporates a liquid capacitive tilt sensor, which allows for accurate measurements even in high-temperature and high-vibration environments. What sets it apart from modern analogs of accelerometers is its ability to provide results ahead of the curve.

Additionally, the inclusion of a specially designed fluxgate within the device ensures non-linearity in the dimension of no more than 0.1%. This innovation translates into exceptionally high accuracy, minimal noise levels, and consistently stable readings, even in extreme temperature conditions.

Power to Last

Inside the device, a high-capacity battery reigns supreme. It empowers the inclinometer to make up to 18 measurements in the well without the need for time-consuming recharging. This is a game-changer, as it significantly enhances operational efficiency.

The Inner Workings of Inclinometer ITA

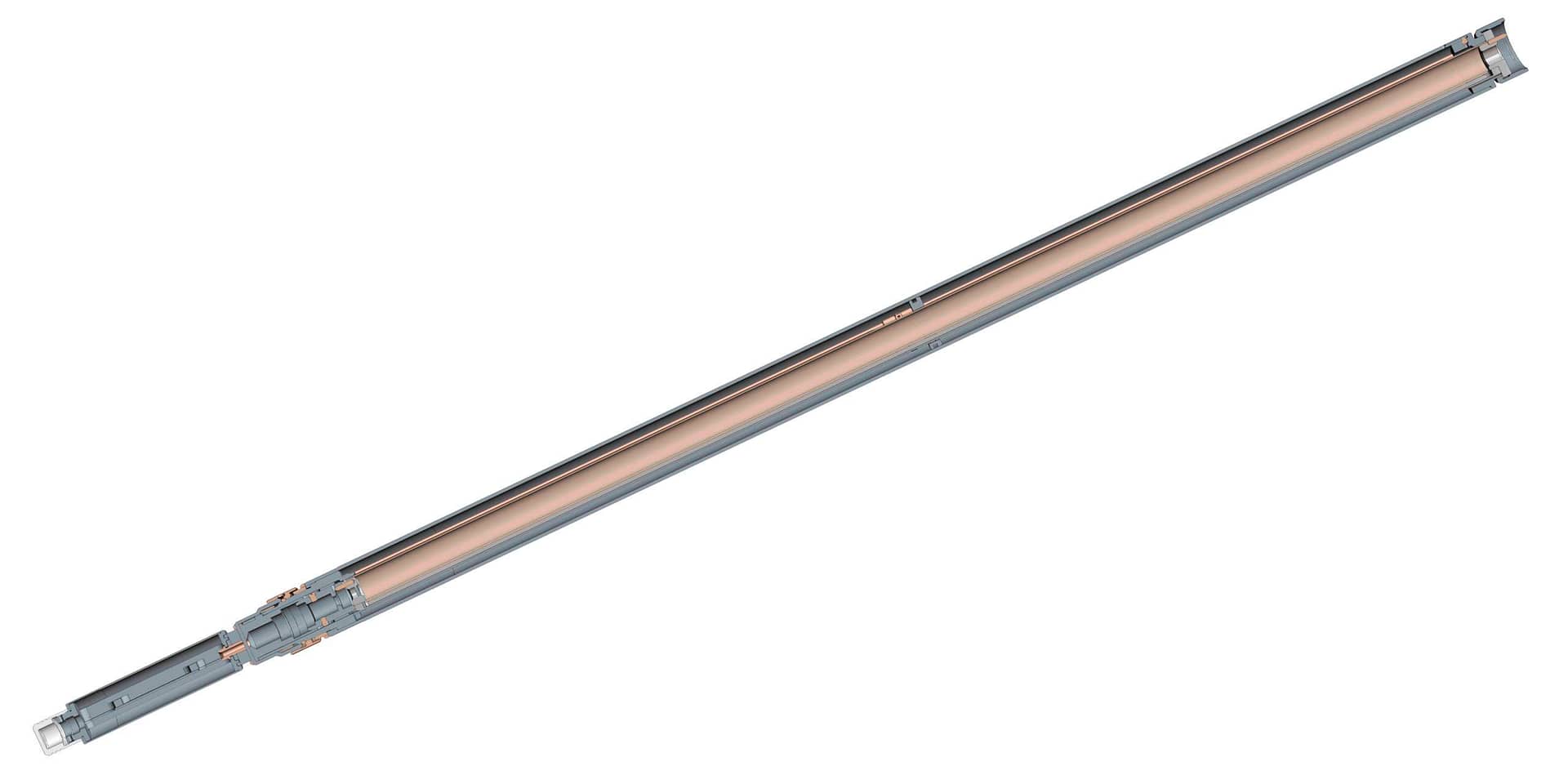

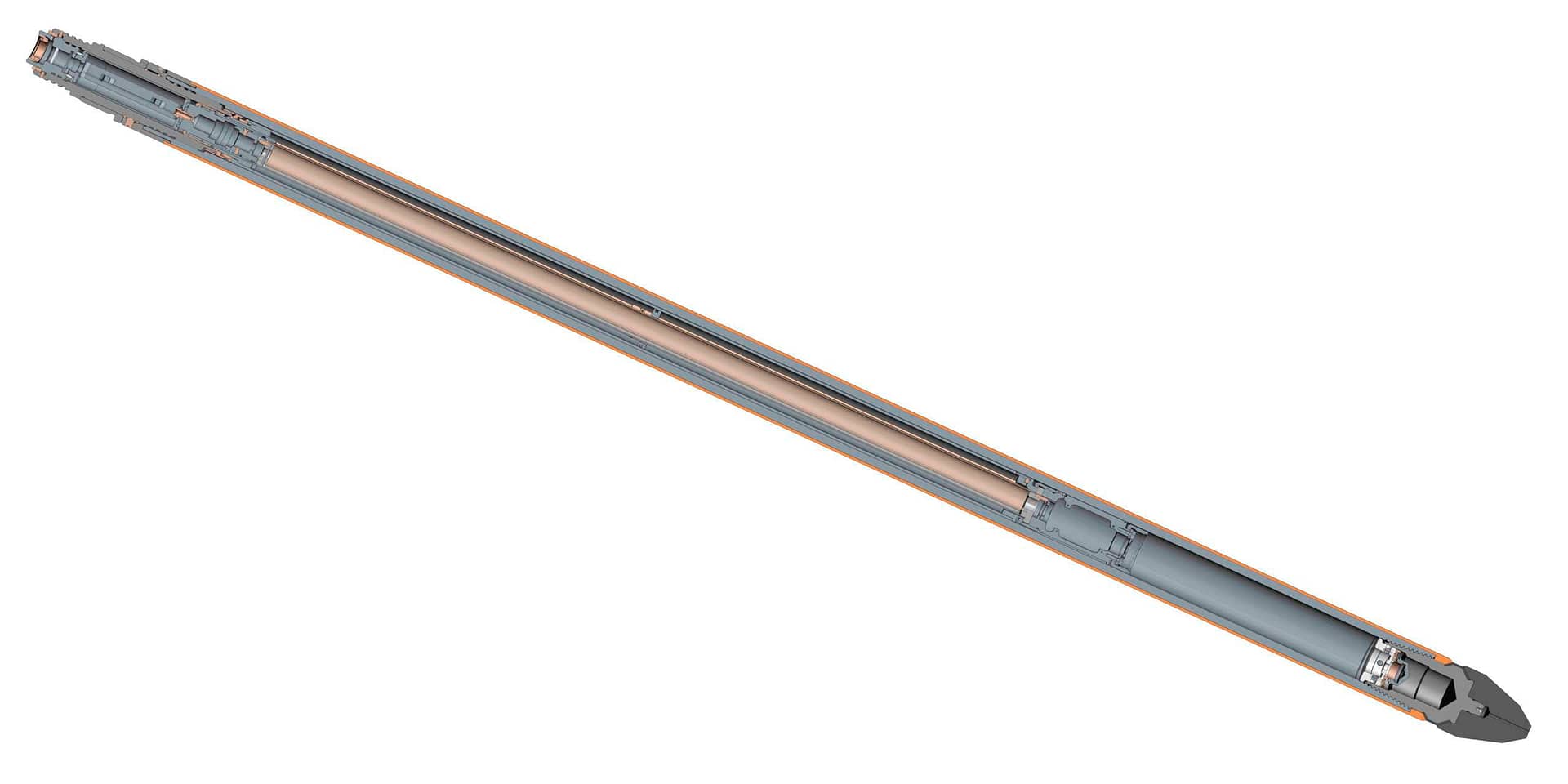

The Inclinometer ITA employs a standard implementation scheme consisting of a 3-axis fluxgate magnetometer and a 3-axis capacitive tilt sensor. Stored in non-volatile memory, the output values encompass the azimuth, inclination, toolface (roll) angles, three magnetic components, three gravitational components, and temperature readings.

This wealth of information is invaluable for various drilling applications, ranging from straight-hole drilling to the complexities of horizontal drilling.


Advantages that Set it Apart

Offline Logging Inclinometer ITA has a slew of advantages that make it the preferred choice in demanding drilling scenarios:

1. Accelerometer-Free Operation

One standout feature is the absence of accelerometers of any kind. This eliminates the need for recalibration and ensures consistent, accurate data throughout the operation.

2. Precision and Robustness

The technology’s accuracy and robustness are second to none. It can withstand high shock levels and offers enhanced circuit protection, ensuring uninterrupted performance even in harsh conditions.

3. In-House Manufacturing

The inclusion of in-house manufactured fluxgate magnetometers and inclination sensors adds to the device’s reliability. This quality control ensures that every unit meets the highest industry standards.

4. Extended Logging Time

Offline Logging Inclinometer ITA boasts extended logging time, thanks to enhanced power efficiency and extended memory capacity. This means more data can be collected without frequent interruptions.

5. Custom Configurations

Furthermore, custom configurations and temperature variations are available, making it adaptable to a wide range of drilling scenarios.

In Conclusion

Offline Logging Inclinometer ITA is a game-changing technology that has revolutionized the world of oil well drilling. Its ability to provide accurate, real-time data in challenging drilling scenarios makes it an indispensable tool for modern drilling operations.

Whether you are drilling a straight hole or navigating the complexities of horizontal drilling, this technology offers the precision and reliability you need to succeed in the oil industry. Say goodbye to the limitations of conventional wireline operations and embrace the future with Offline Logging Inclinometer ITA.

So, the next time you embark on a drilling project in challenging conditions, remember that Inclinometer ITA has your back, ensuring your operations run smoothly and efficiently.

Incorporate Offline Logging Inclinometer ITA into your drilling arsenal and experience the difference firsthand.

Unleash the power of technology and make your drilling operations safer and more efficient with Offline Logging Inclinometer ITA.
