Gamma Ray detector GR-46
Introduction
In today’s world, geophysical research plays a crucial role in various fields, from mineral exploration to well construction. To achieve more precise and efficient investigations, the Gamma Ray detector GR-46 has been developed, representing a significant upgrade for geophysical equipment used in gamma logging. In this article, we will take a detailed look at how the GR-46 detector enhances the process of geophysical studies and the monitoring of the exposure dose rate of natural gamma radiation during well exploration.
About the Gamma Ray detector GR-46

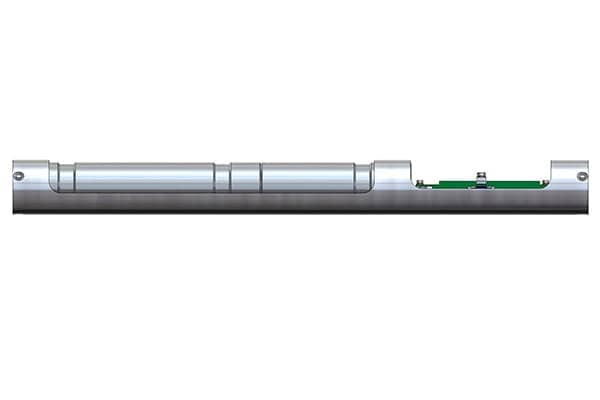

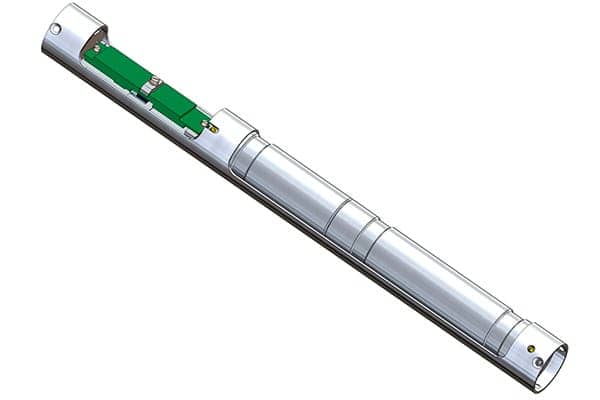

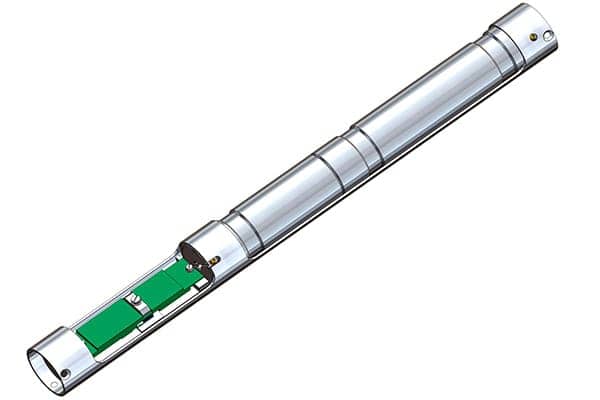

The GR-46 detector is a scintillation detector with a photomultiplier tube and a counting-amplifying electronic board, all housed in a special protective casing. This innovative module is designed to be integrated into various types of geophysical equipment, either as an upgrade or as an additional component for conducting gamma logging geophysical studies.
Application of the GR-46 detector
The GR-46 detector is used for monitoring the exposure dose rate of natural gamma radiation during well investigations. It operates by measuring the intensity of natural gamma radiation along the wellbore. This radiation occurs due to the spontaneous decay of radioactive elements present in rock formations. The GK-46 detector enables geophysicists and well exploration specialists to obtain accurate and reliable data on gamma radiation levels, which is essential for determining rock composition and well characteristics.
Key Features of the GR-46 detector
1. NaI (Tl) Crystal
The GR-46 detector is equipped with an NaI (Tl) crystal measuring 30×150 mm. This crystal has high sensitivity to gamma radiation, allowing for precise measurement of its intensity in wells.
2. HAMAMATSU R6877A Photomultiplier Tube
To ensure accurate measurements, the HAMAMATSU R6877A photomultiplier tube is used. It provides high efficiency and allows for precise signal reading from the NaI (Tl) crystal.
3. Dimensions
The GR-46 detector has a diameter of 46 mm and a length of 492 mm, making it compact and convenient for use in confined well spaces.
Conclusion
The Gamma Ray detector GR-46 Module is an essential component of modern geophysical research equipment. Its high sensitivity, reliability, and compact size make it an excellent choice for monitoring gamma radiation in wells. Thanks to the GR-46 detector, specialists can conduct more precise and informative studies, contributing to the advancement of modern geophysics.
Frequently Asked Questions (FAQs)
What types of geophysical studies can be conducted using the GR-46 detector?
The GR-46 detector is ideal for gamma logging geophysical studies, allowing the measurement of gamma radiation intensity in wells and the determination of rock composition.What crystal is used in the scintillation detector of the GR-46?
The scintillation detector of the GR-46 uses an NaI (Tl) crystal measuring 30×150 millimeters.What is the role of the HAMAMATSU R6877A photomultiplier tube in the GR-46 detector?
The HAMAMATSU R6877A photomultiplier tube amplifies the signal from the scintillation detector, ensuring accurate measurements of gamma radiation intensity.Under what conditions can the GR-46 detector be used?
The GR-46 detector comes in a protective casing and can be used in various well conditions, including harsh environmental conditions.Can the GR-46 detector be integrated into existing equipment?
Yes, the GR-46 detector is easily integrated into existing geophysical equipment, making it a convenient and efficient tool for specialists.
